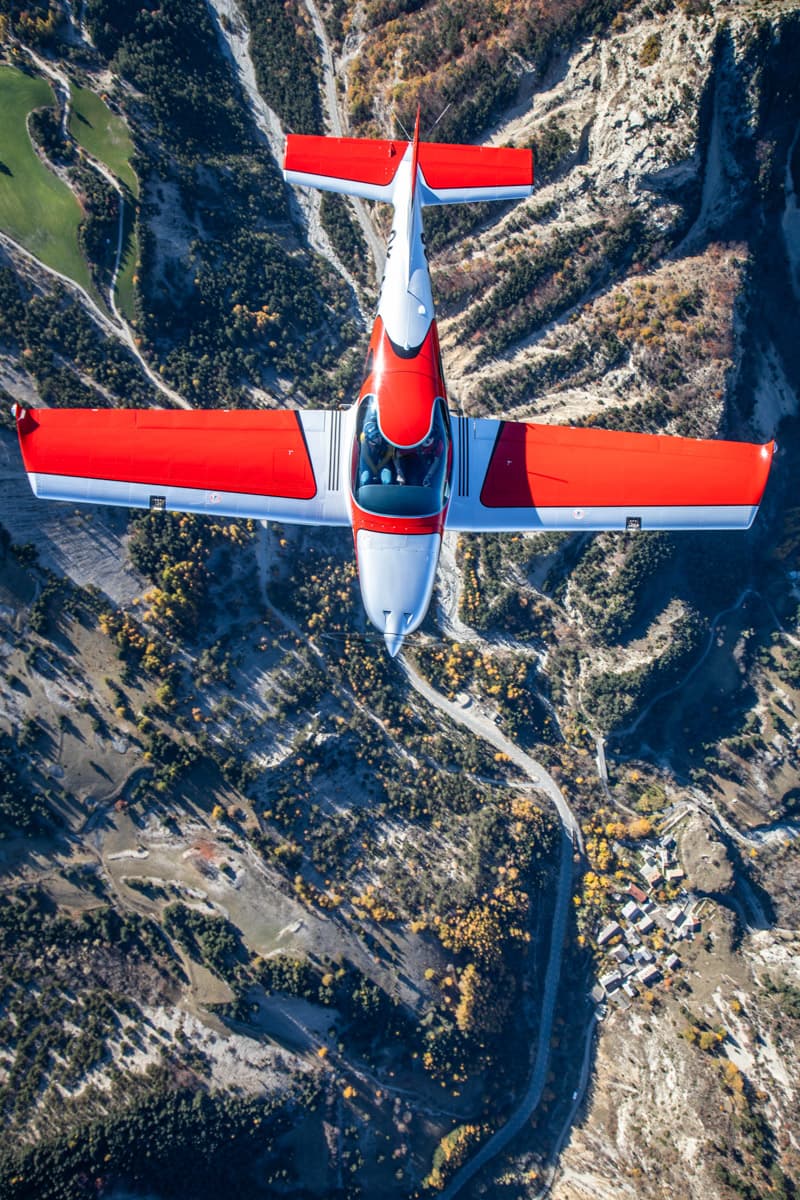

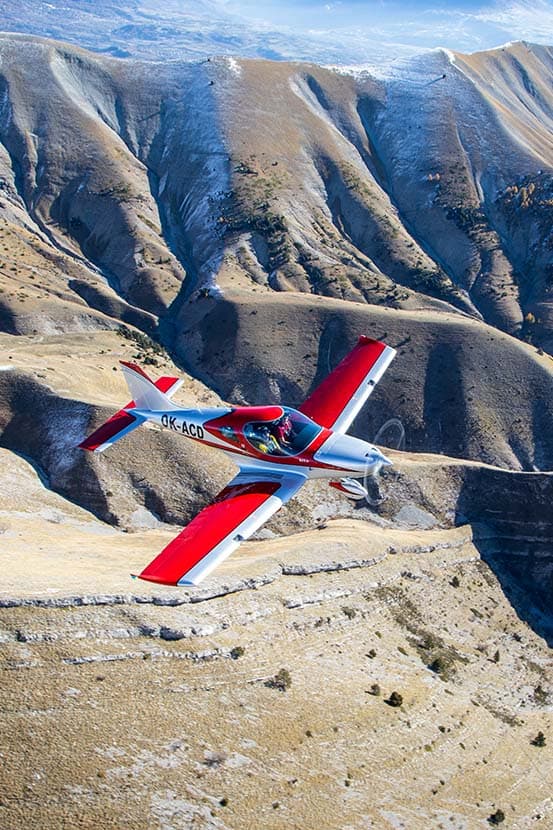

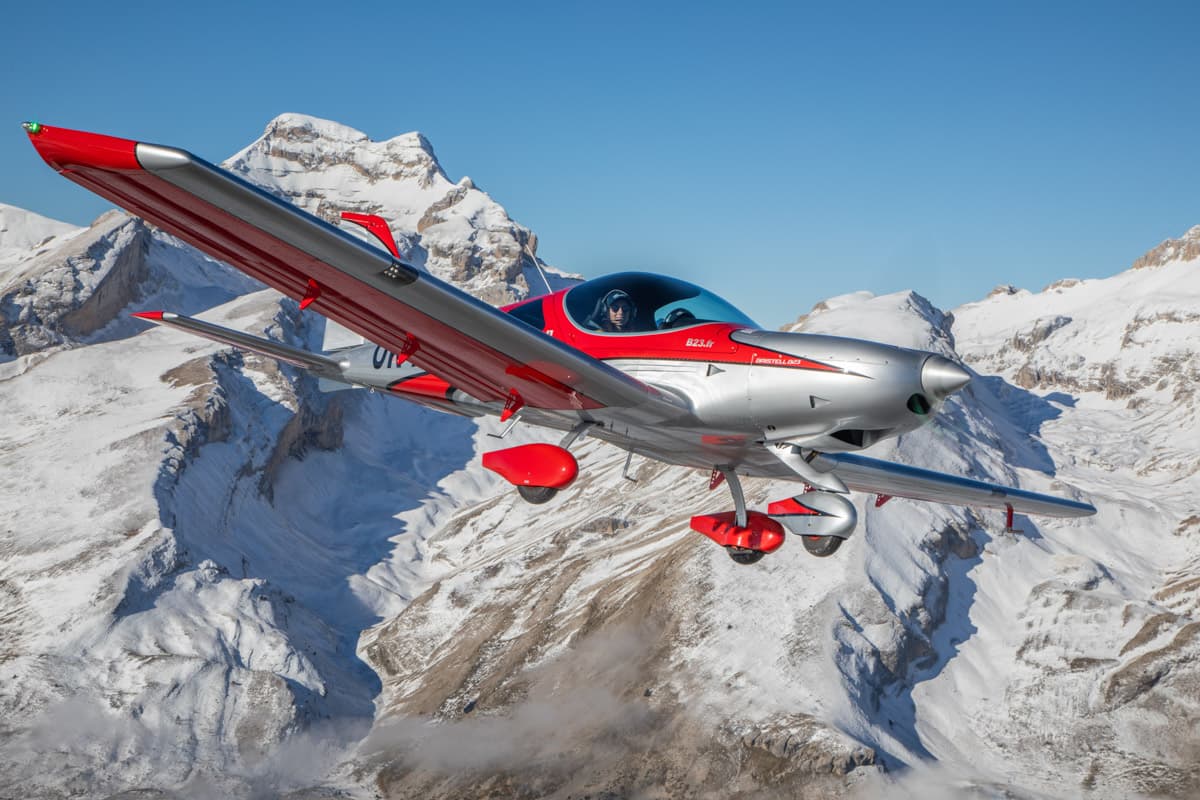

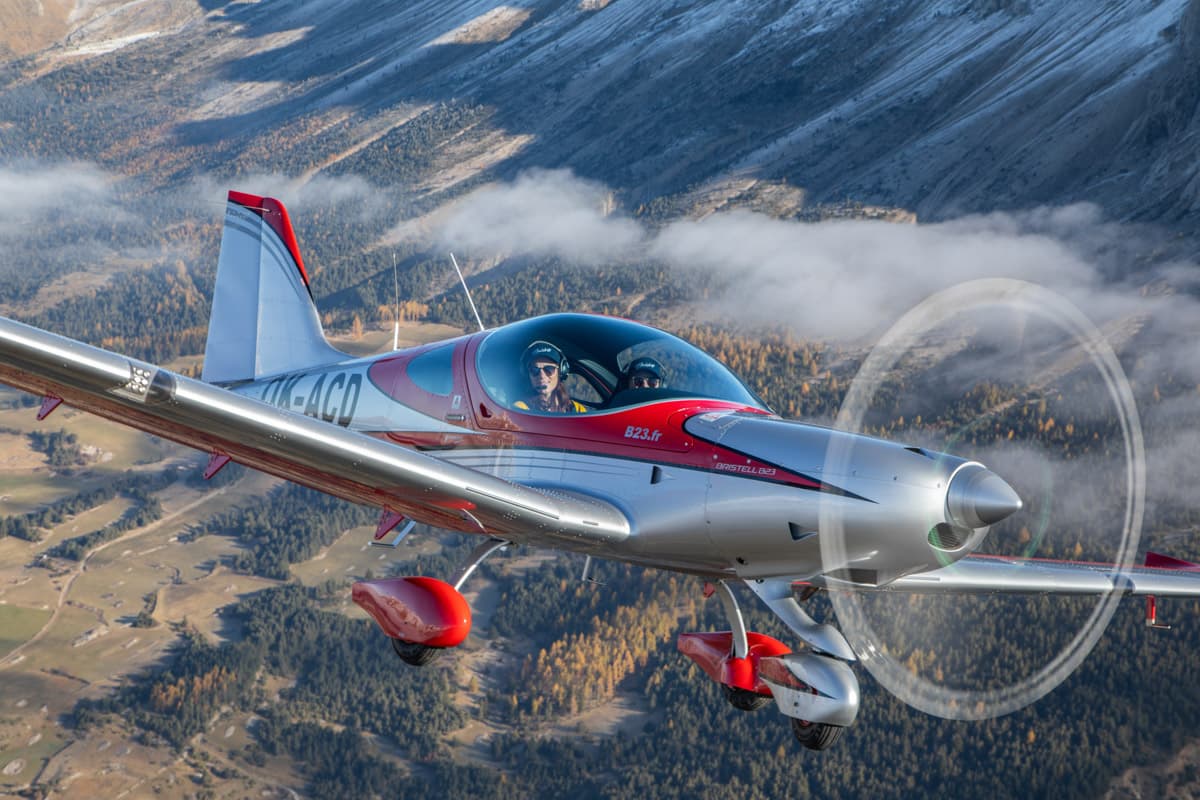

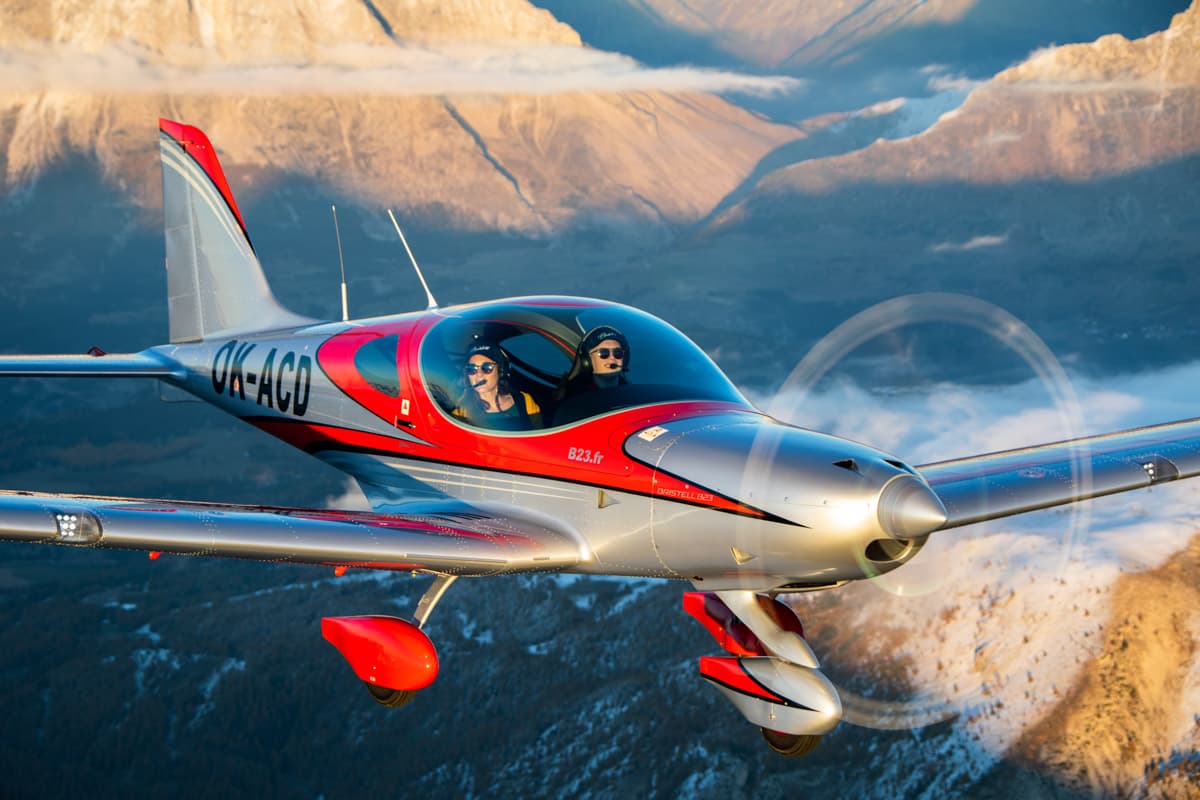

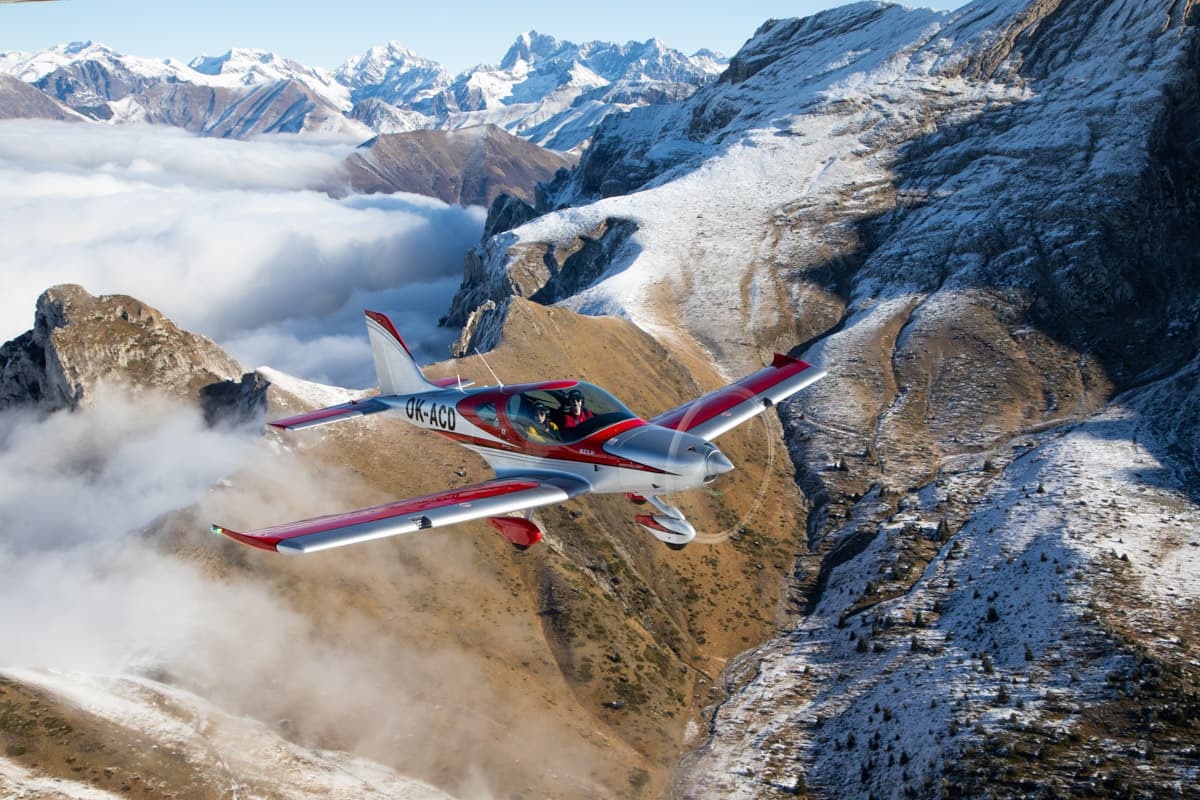

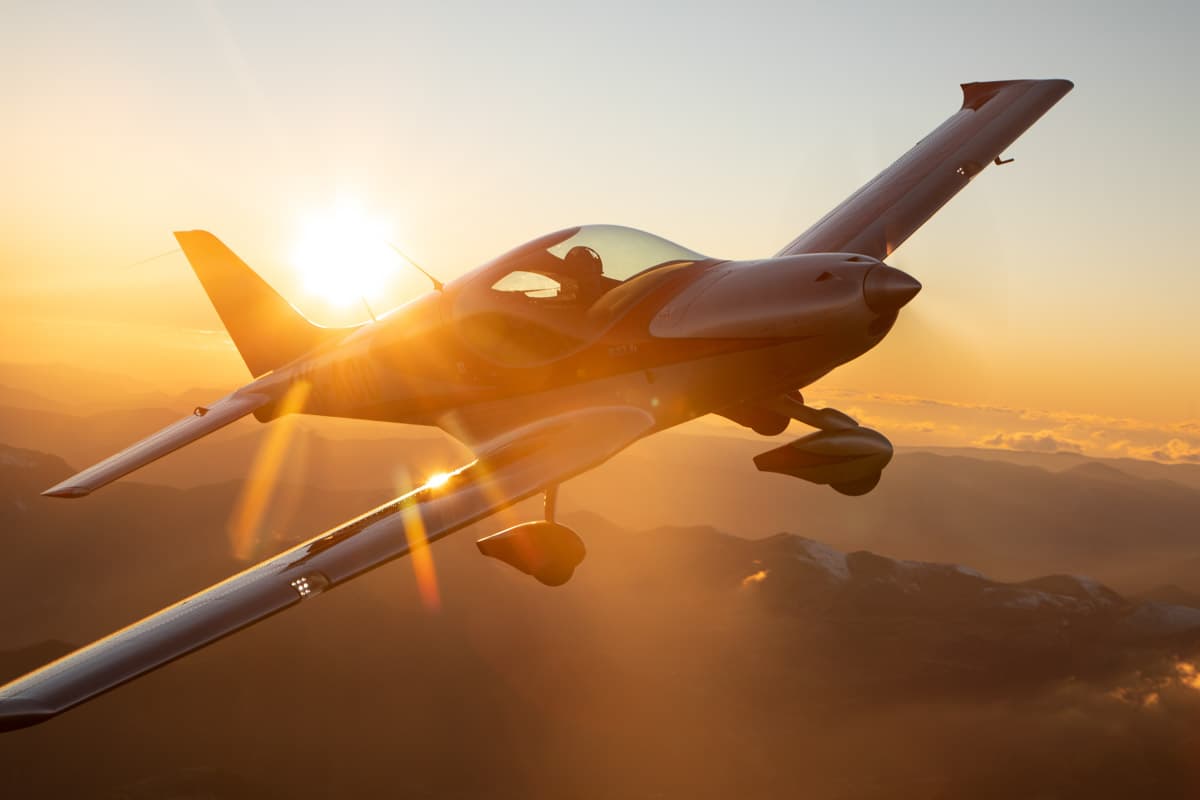

Bristell B 23

BRISTELL, the Czech light aircraft manufacturer which has produced more than 690 LSA aircraft worldwide, has launched the BRISTELL B23, its next generation low-wing airplane. The B23 has been designed to satisfy the European CS23 / U.S. FAR23 certification basis. BRISTELL says they “had listened to feedback from many customers from around the world” before designing the new aircraft.

The basic equipment includes a steerable nose wheel and a BRS ballistic parachute rescue system. The standard-equipped aircraft also meets the night-VFR requirements and can be upgraded to meet IFR requirements.

CERTIFICATE

Bristell B23 technical data

BRISTELL B23 TECHNICAL DATA
Dimensions
Wing span
9.274 m
Wing area
11.75 m2
Wing loading
63.82 kg/m2
Aircraft length
6.585 m
Aircraft height
2.36 m
Cabin width
1.3 m
Weight
Empty weight
450 kg
Maximum take-off weight (MTOW)
750 kg
Useful load
300 kg
Fuel tanks capacity
120 l
Fuselage luggage compartment
15 kg

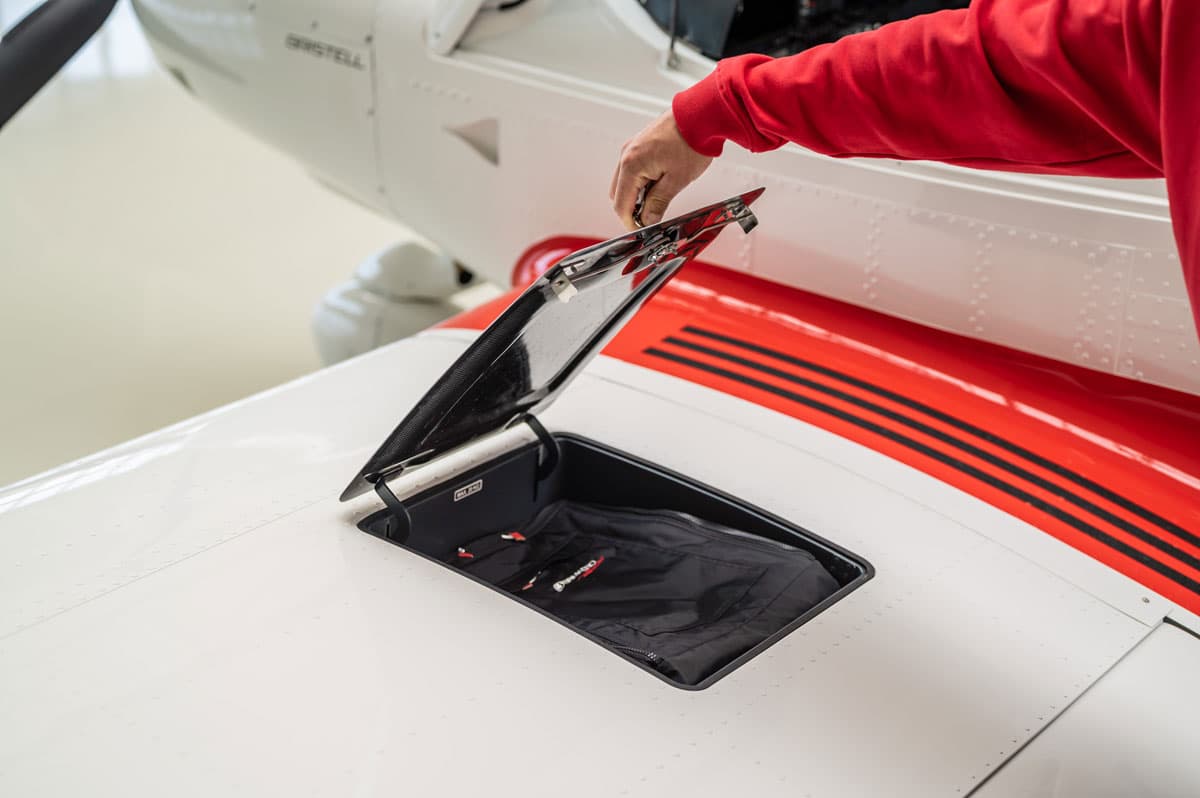

Wing luggage compartment
2 x 20 kg
Load factor
+4/-2g
Airspeed, Climb and Cruise performance
Stall speed without flaps VS1
50 KCAS (MTOW 750 kg)
Stall speed with flaps VS0
43 KCAS (MTOW 750 kg)
Manoeuvring speed VA
98 KCAS
Maximum flap speed VFE
81 KCAS
Maximum horizontal flight speed VH
117 KTAS
Never exceeded speed VNE
156 KCAS
Best rate of climb speed Vy
(flaps retracted), MTOP
74 KIAS
Best angle of climb speed Vx, MTOP
62 KIAS
Best rate of climb speed Vy (flaps 10°), MTOP
76 KIAS
Best rate of climb (flaps 10°),
MTOP
634 ft / min
Take-off distance (ground roll)
365 m
Take-off distance over 15 m (50 ft) obstacle
479 m
Landing distance (ground roll)
146 m
Landing distance from
15 m (50 ft) height
391 m
All data at MTOW 750 kg
