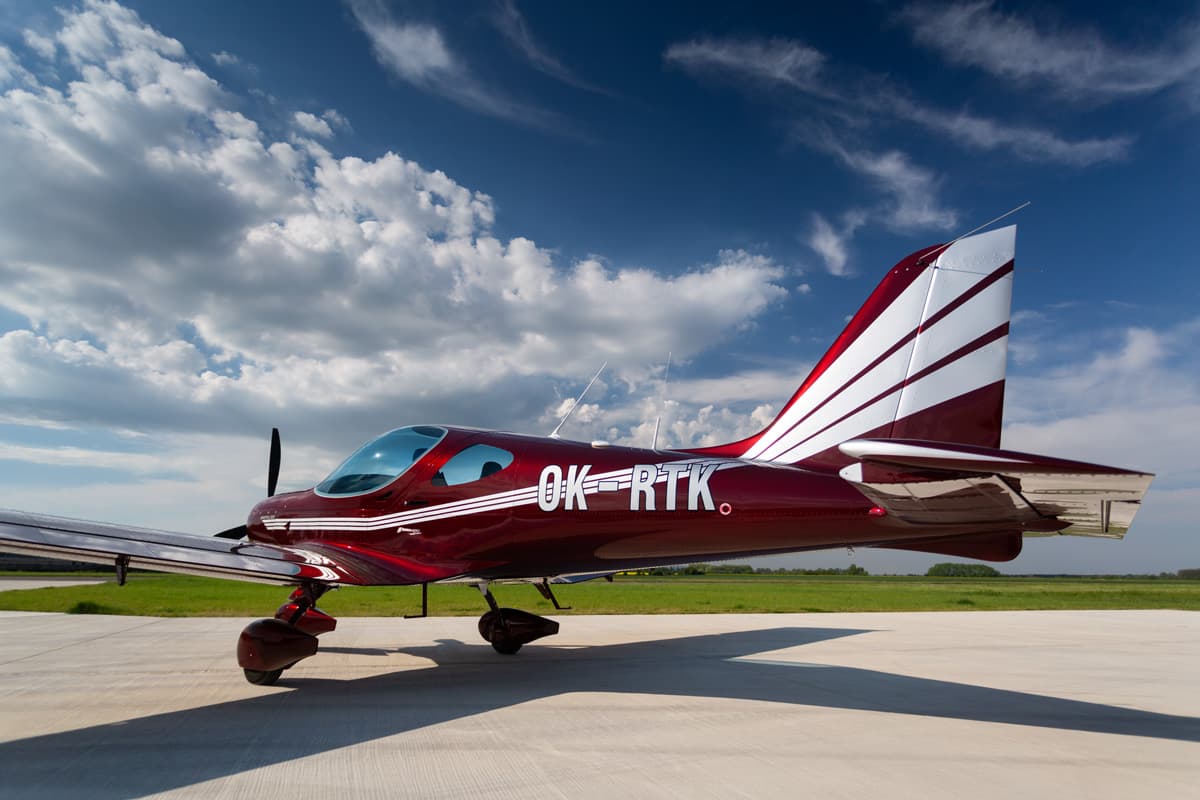

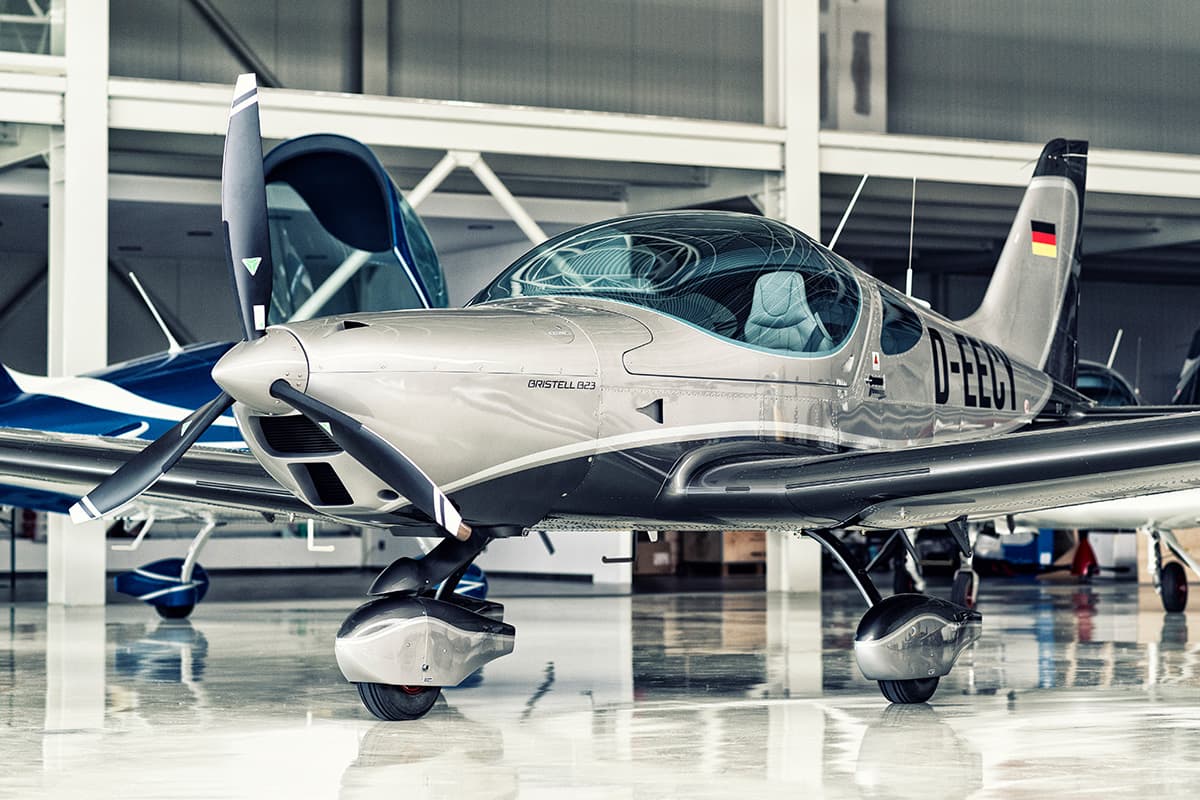

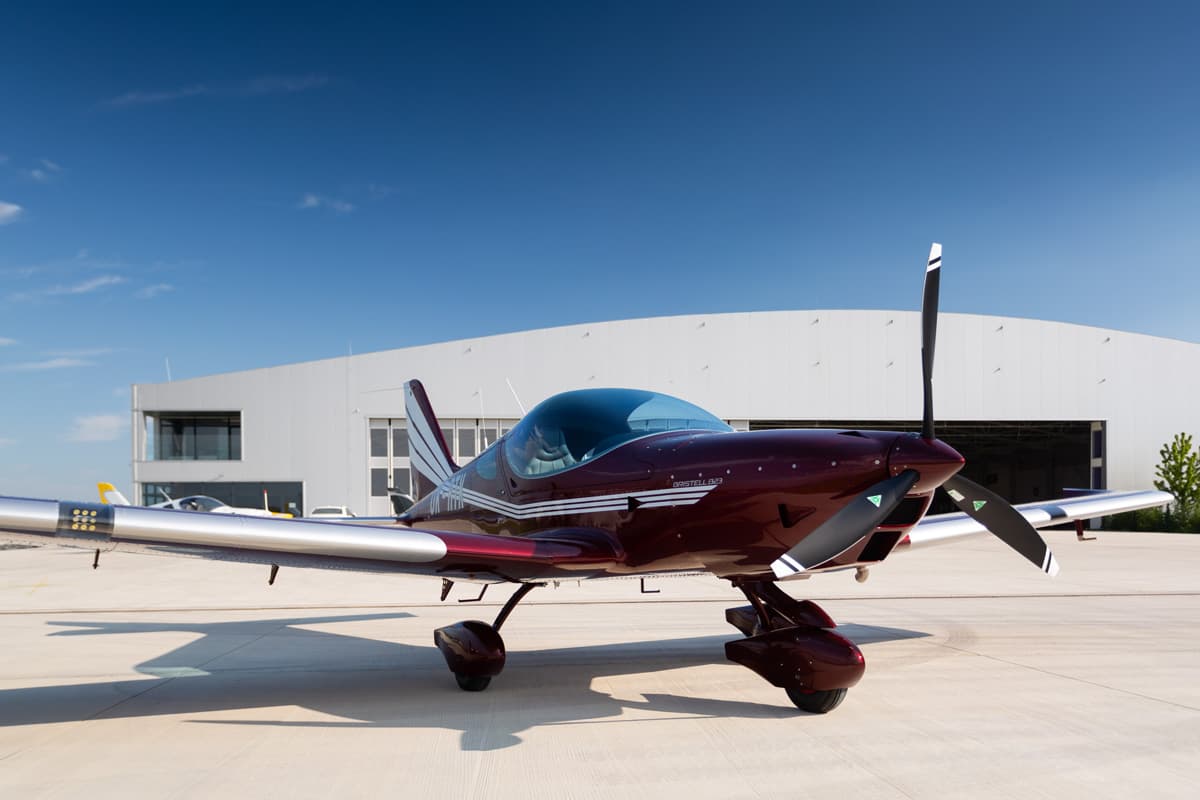

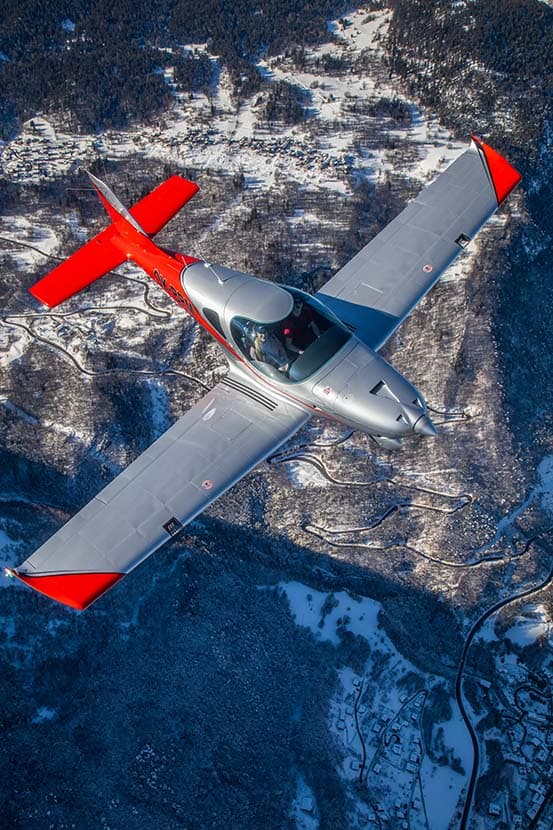

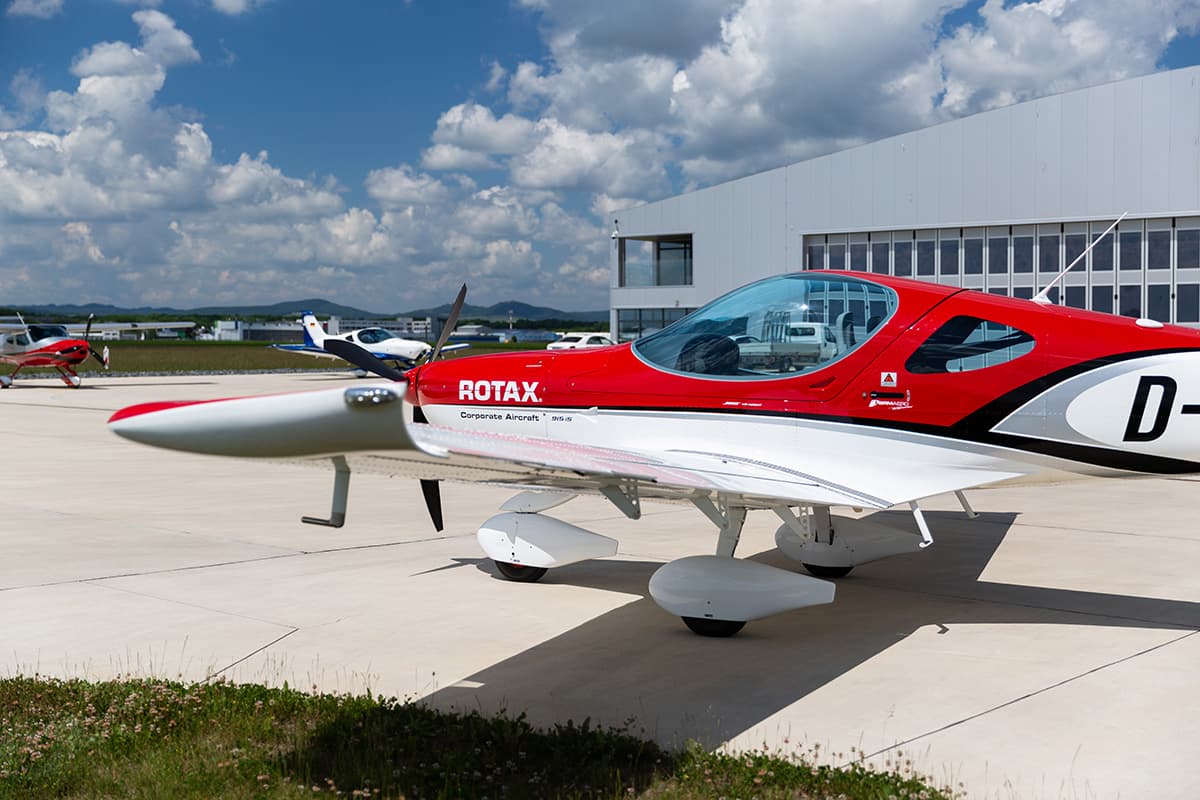

Bristell B 23 Turbo

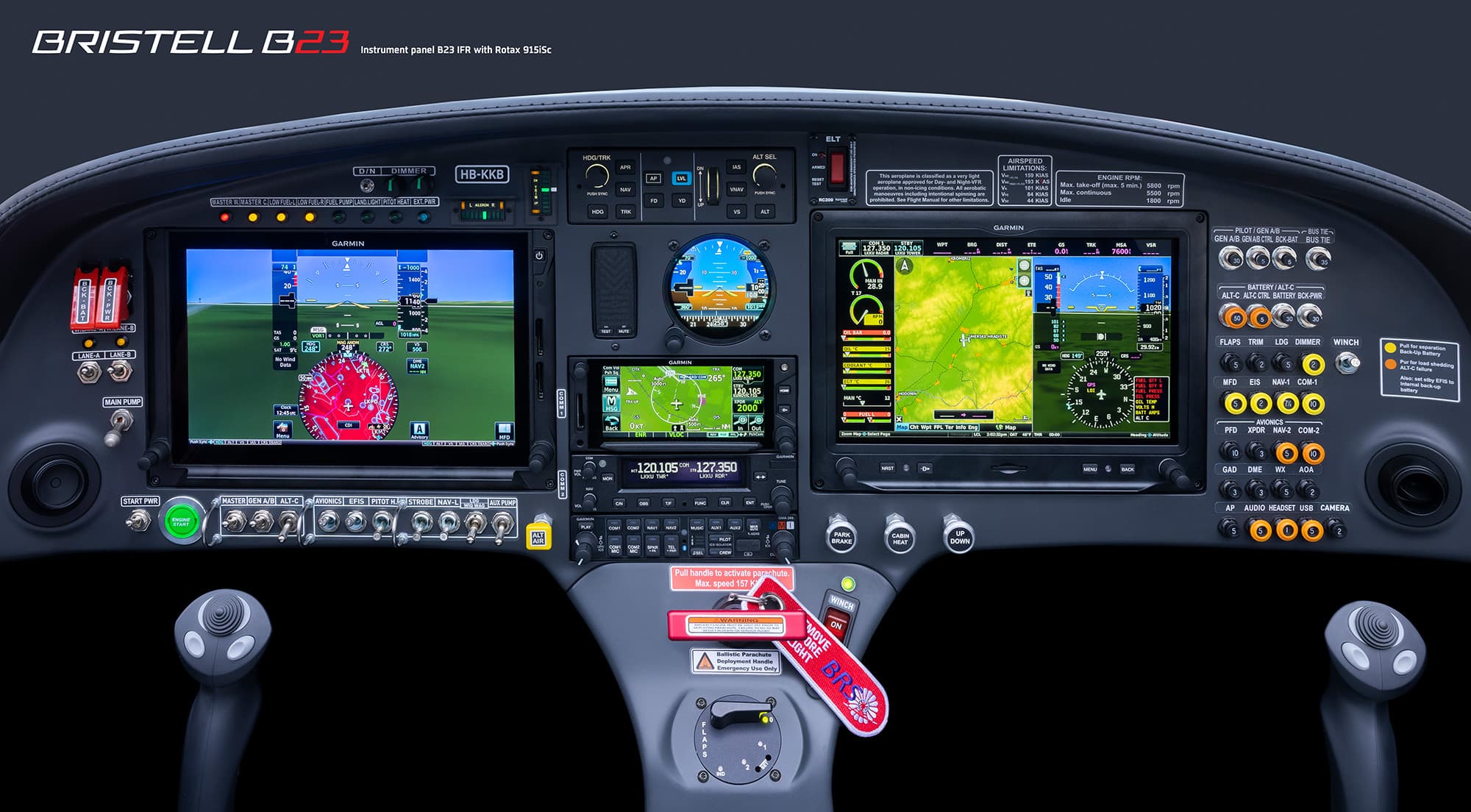

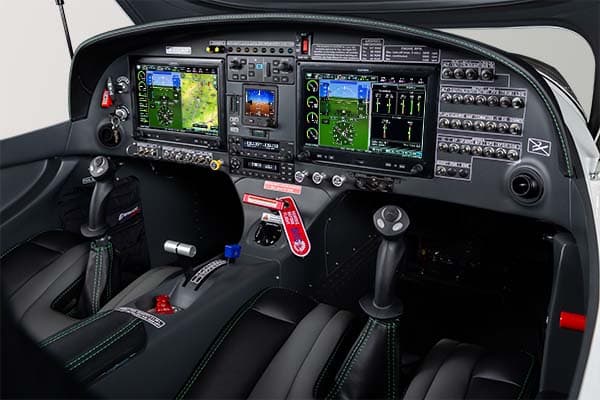

While the airplane looks very similar to the classic BRISTELL LSA, there is in fact far more to the new design. The fuselage is longer and the tail is larger, with an aluminium rudder; the flaps and stabiliser are bigger and more efficient; the composite main landing gear legs have been redesigned completely to be able to carry much higher loads than previous Bristell models; and the aircraft’s handling characteristics are much improved. In addition, a twin elevator trim tab function helps the pilot to optimise the forces on the control stick.Basic equipment includes steerable nose wheel and a BRS ballistic parachute rescue system. The standard equipped aircraft also meets night-VFR requirements and can be upgraded to meet IFR requirements.

CERTIFICATE

Bristell B23Turbo technical data

BRISTELL B23 TURBO TECHNICAL DATA
Dimensions
Wing span
9.274 m
Wing area
11.75 m2
Wing loading
63.82 kg/m2
Aircraft length
6.585 m
Aircraft height
2.36 m
Cabin width
1.3 m
Weight
Empty weight
465 kg
Maximum take-off weight (MTOW)
750 kg
Useful load
285 kg
Fuel tanks capacity
120 l
Fuselage luggage compartment
15 kg
Wing luggage compartment
2 x 20 kg
Load factor
+4/-2g
Airspeed, Climb and Cruise performance
Stall speed without flaps VS1
50 KCAS (MTOW 750 kg)
Stall speed with flaps VS0
43 KCAS (MTOW 750 kg)
Manoeuvring speed VA
98 KCAS
Maximum flap speed VFE
81 KCAS
Maximum horizontal flight speed VH FL140
157 KTAS
Never exceeded speed VNE
156 KCAS
Best rate of climb speed Vy (flaps retracted), MTOP
82 KIAS
Best rate of climb (flaps retracted), MTOP
1260 ft / min
Best angle of climb speed Vx, MTOP
66 KIAS
Best rate of climb speed Vy (flaps 10°), MTOP
84 KIAS
Best rate of climb (flaps 10°), MTOP
1195 ft / min
Take-off distance (ground roll)
176 m
Take-off distance over 15 m (50 ft) obstacle
331 m
Landing distance (ground roll)
146 m
Landing distance from 15 m (50 ft) height
391 m
All data at MTOW 750 kg
